Escalator Rollers

Escalator Rollers
DI T&I has developed a full range of urethane rollers used in OTIS escalators, including step rollers, chain rollers, and guide rollers, and continues to supply these products to OTIS. In particular, we have introduced an advanced manufacturing process in which urethane is directly molded onto the bearing for step rollers. This innovation significantly improves productivity while reducing costs compared to conventional methods. To ensure consistently high quality, all step rollers undergo rigorous inspection using durability testing equipment and urethane material testing systems. All escalators installed at Incheon International Airport are equipped with DI T&I components, demonstrating the proven quality and reliability of our products.

The products listed below represent our main offerings. We also provide customized specifications to meet specific customer requirements upon request.

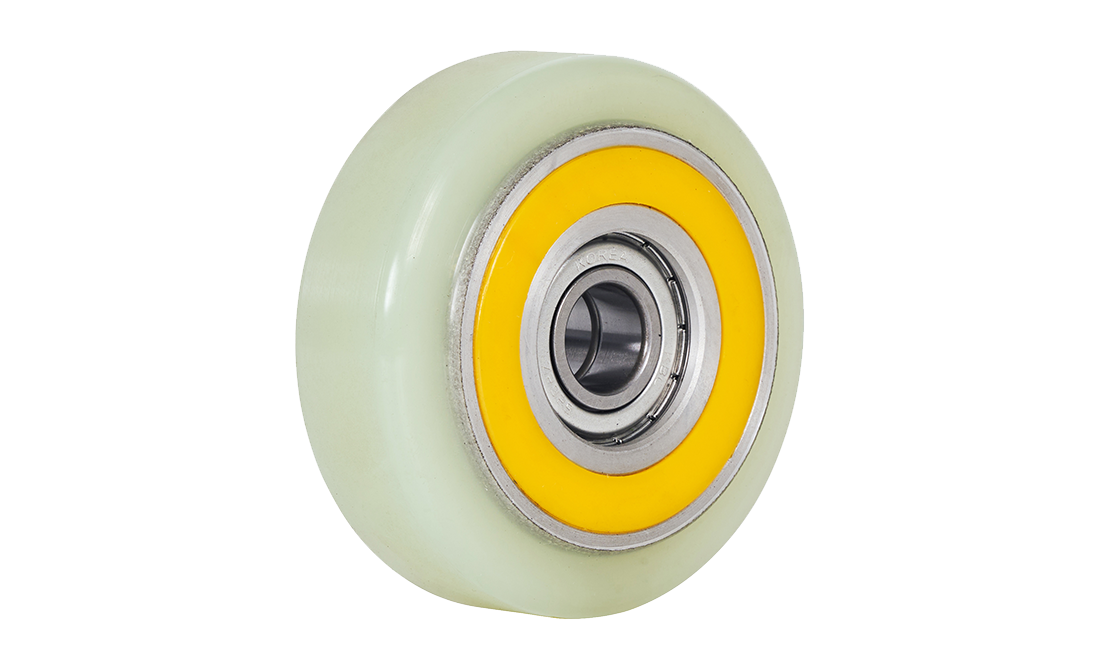

  • 3L06223

    3L06223

    • Outer Diameter(mm) Ø80
    • Bearing 6202 ZZ
    • Inner Diameter(mm) Ø35
    • Hardness(˚) 95
    • Width(mm) 29

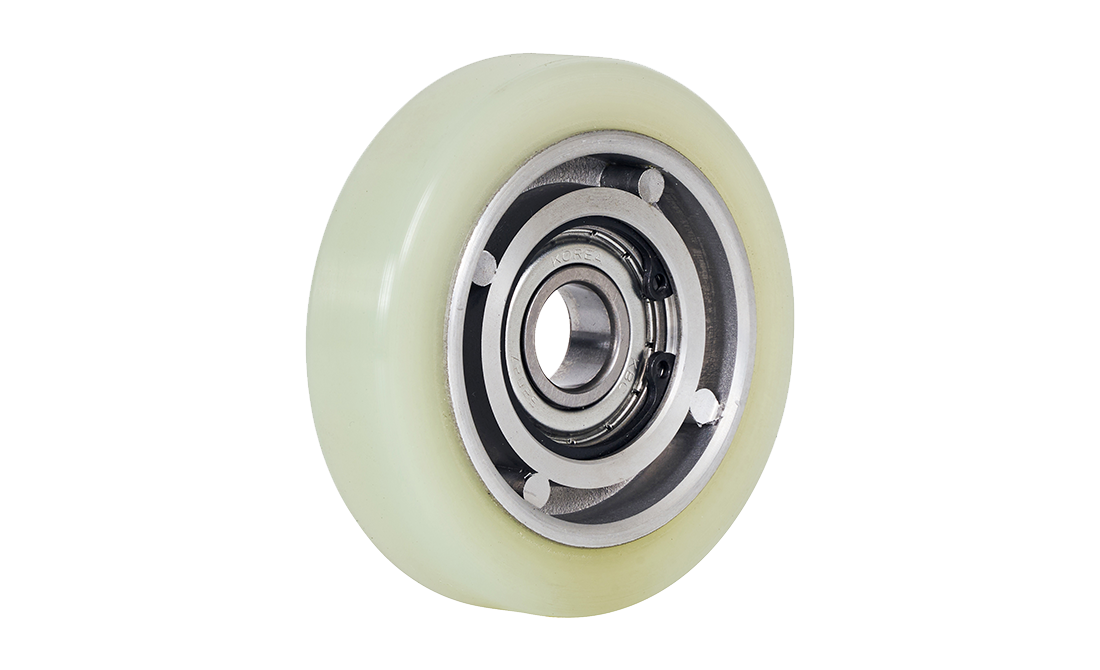

  • 3L06299

    3L06299

    • Outer Diameter(mm) Ø80
    • Bearing 6202 ZZ
    • Inner Diameter(mm) Ø35
    • Hardness(˚) 95
    • Width(mm) 23

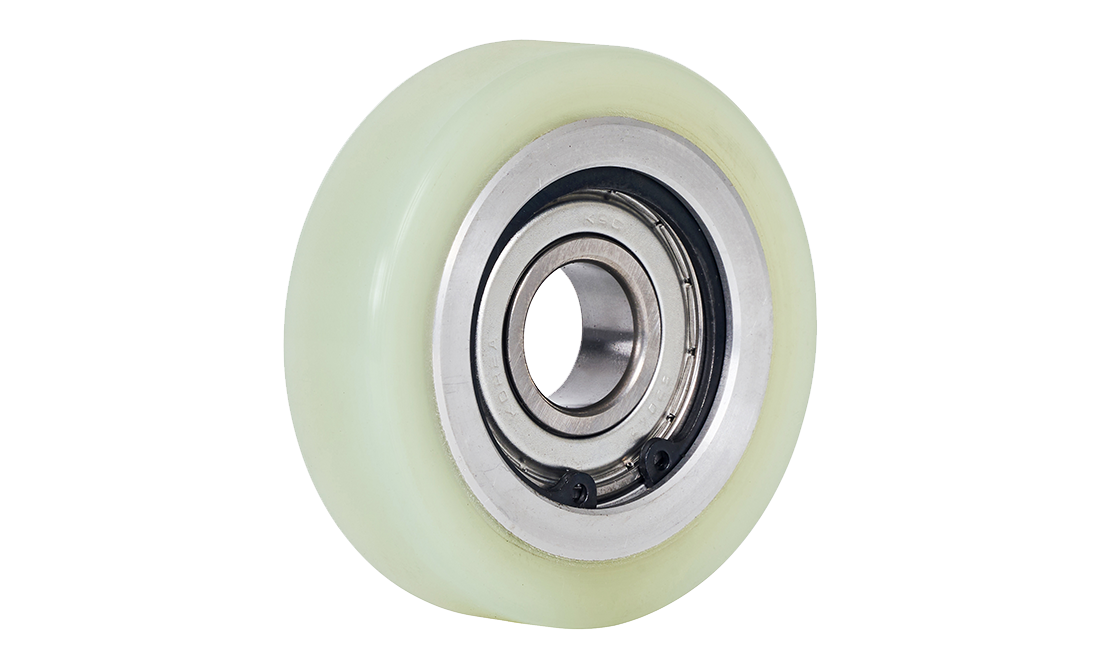

  • 4L07975

    4L07975

    • Outer Diameter(mm) Ø80
    • Bearing 6204 ZZ
    • Inner Diameter(mm) Ø47
    • Hardness(˚) 95
    • Width(mm) 23

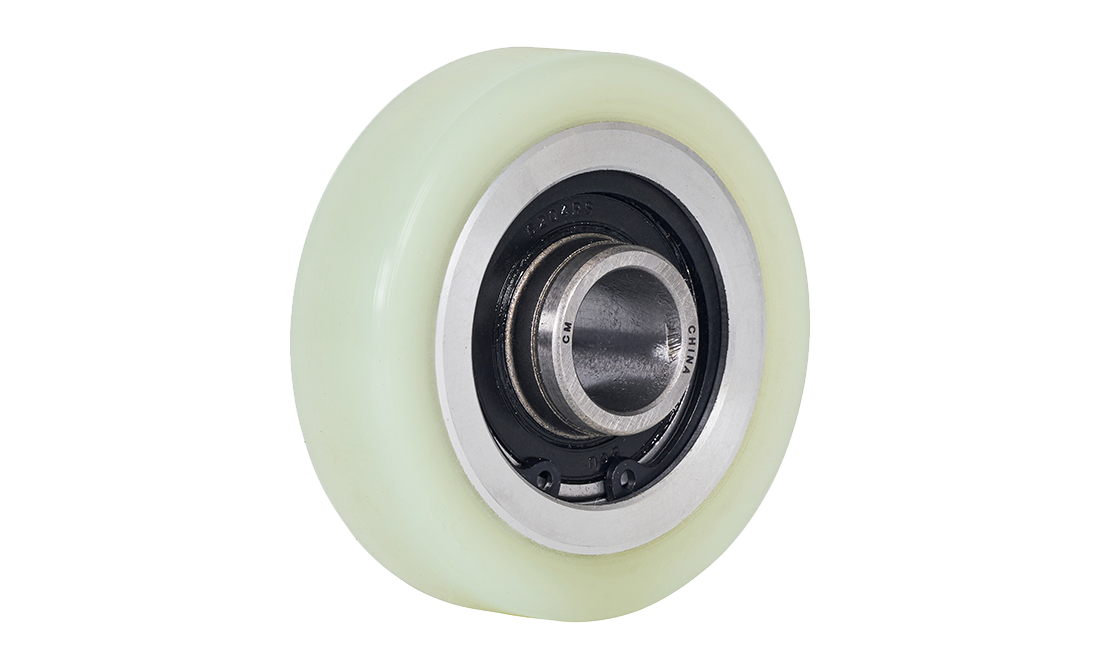

  • 4L10054

    4L10054

    • Outer Diameter(mm) Ø80
    • Bearing 6204 BUSH DD
    • Inner Diameter(mm) Ø47
    • Hardness(˚) 95
    • Width(mm) 23

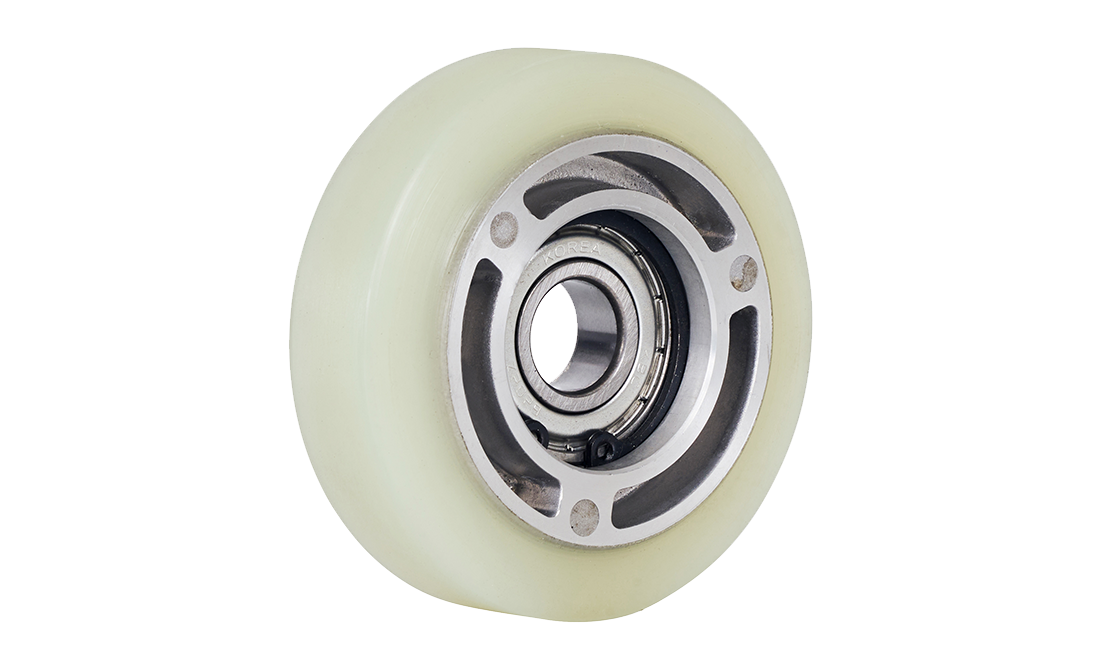

  • 3L04206

    3L04206

    • Outer Diameter(mm) Ø76
    • Bearing 6202 ZZ
    • Inner Diameter(mm) Ø35
    • Hardness(˚) 95
    • Width(mm) 25

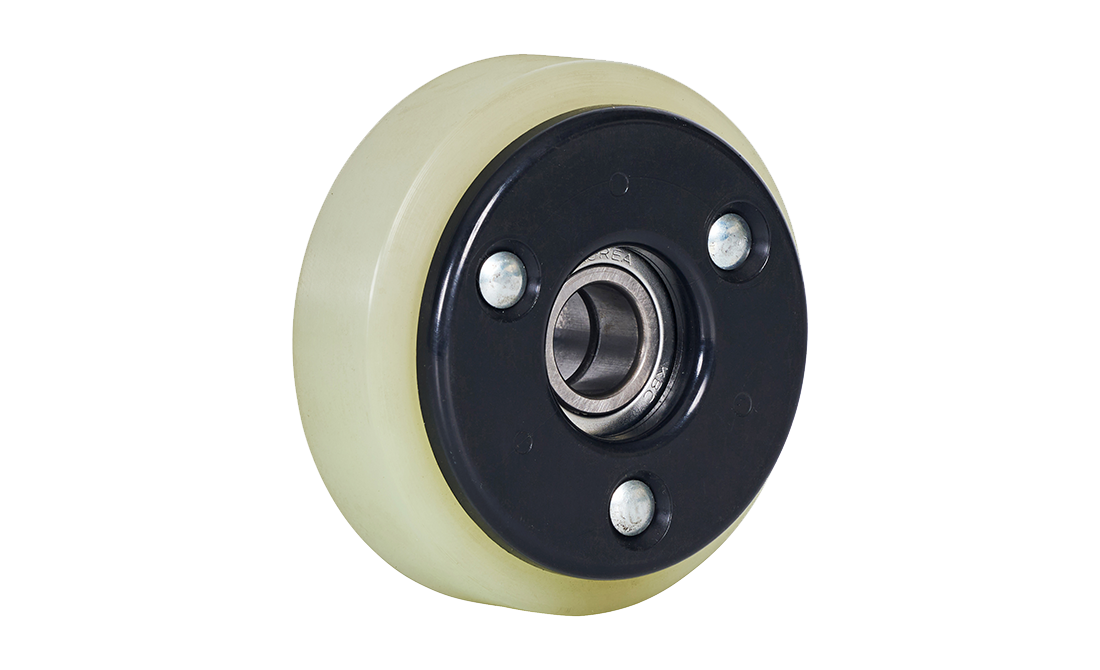

  • 76.2*35.3

    76.2*35.3

    • Outer Diameter(mm) Ø76
    • Bearing 6202 ZZ
    • Inner Diameter(mm) Ø35
    • Hardness(˚) 95
    • Width(mm) 35.3

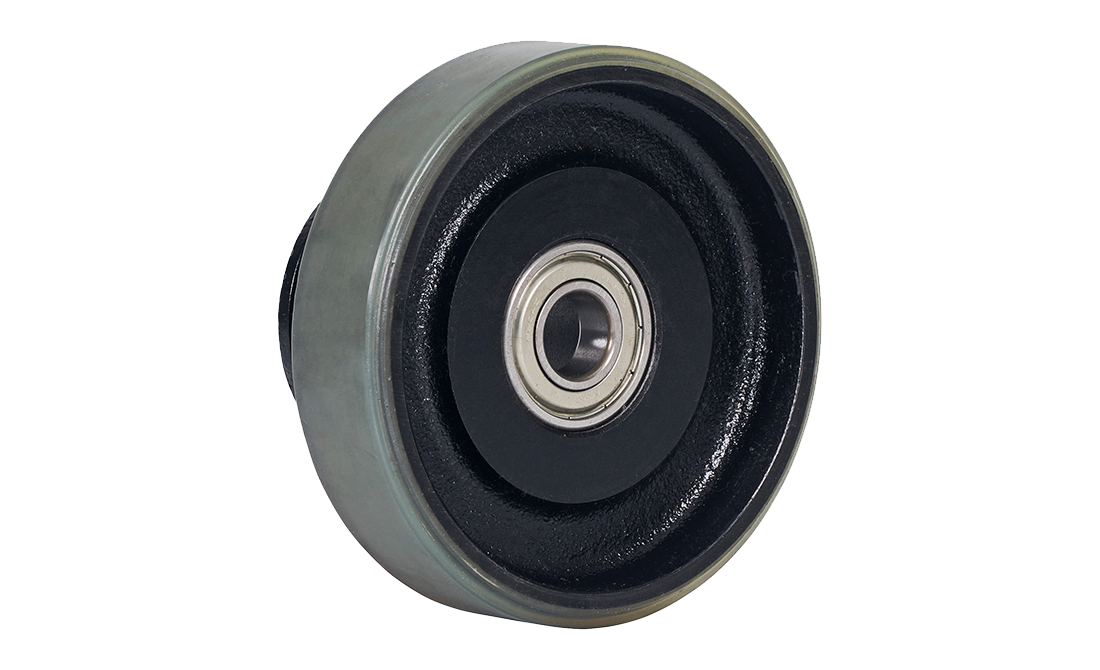

  • 2L05344

    2L05344

    • Outer Diameter(mm) Ø140
    • Bearing 6204 ZZ
    • Inner Diameter(mm) Ø47
    • Hardness(˚) 90
    • Width(mm) 86

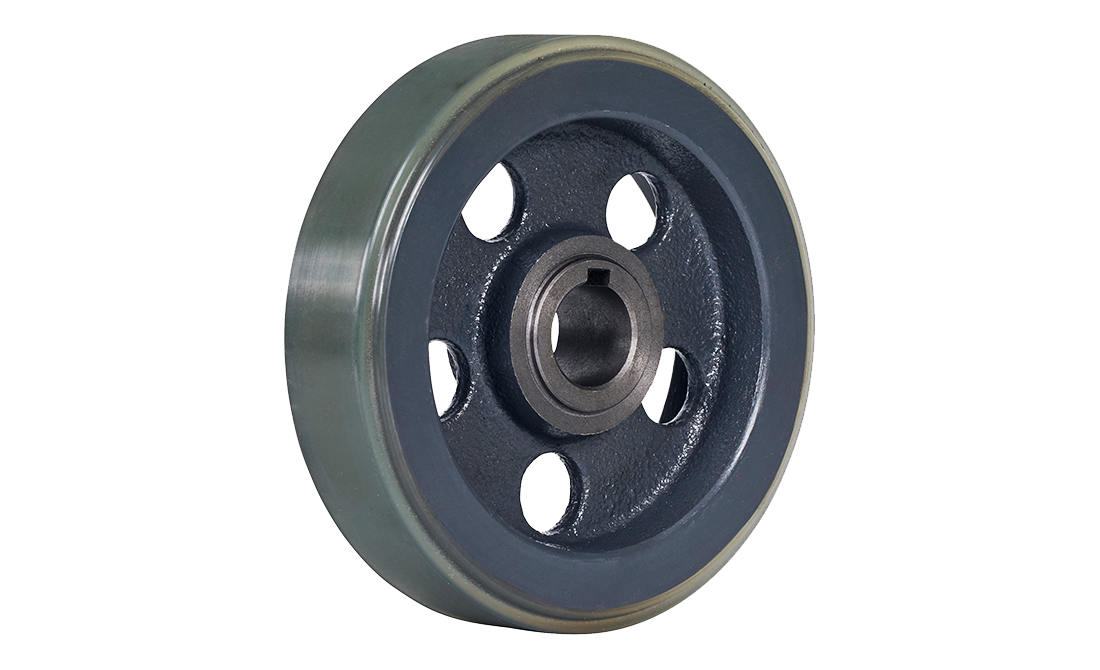

  • 3L12306B

    3L12306B

    • Outer Diameter(mm) Ø144
    • Bearing
    • Inner Diameter(mm) Ø25
    • Hardness(˚) 90
    • Width(mm) 36

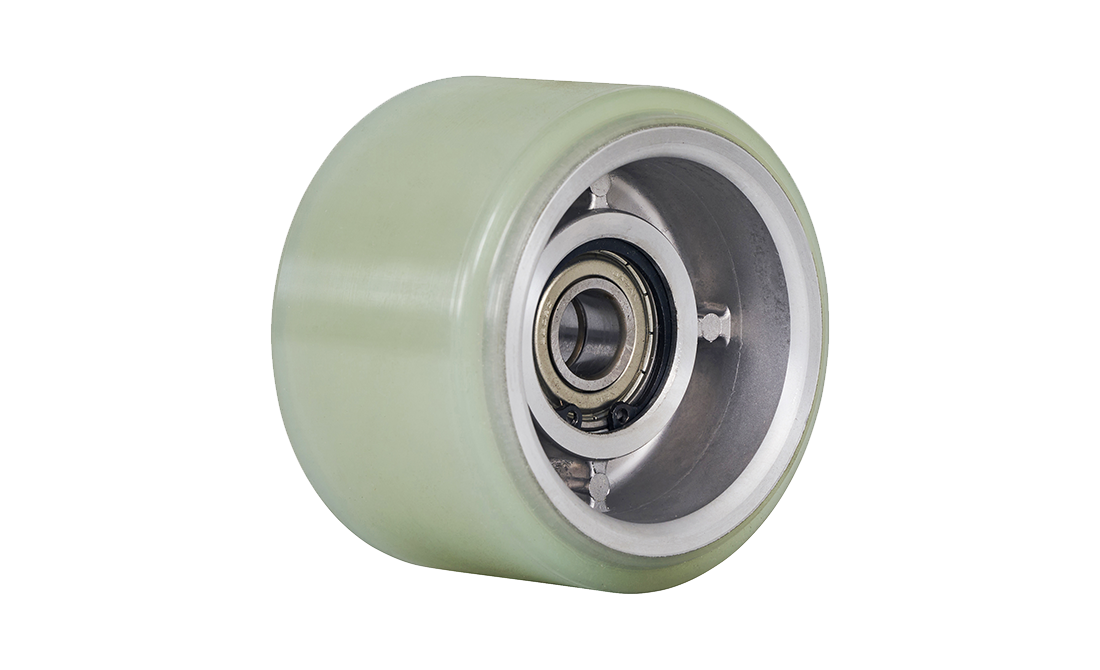

  • 3L05304

    3L05304

    • Outer Diameter(mm) Ø90
    • Bearing 6202 ZZ
    • Inner Diameter(mm) Ø35
    • Hardness(˚) 80
    • Width(mm) 60

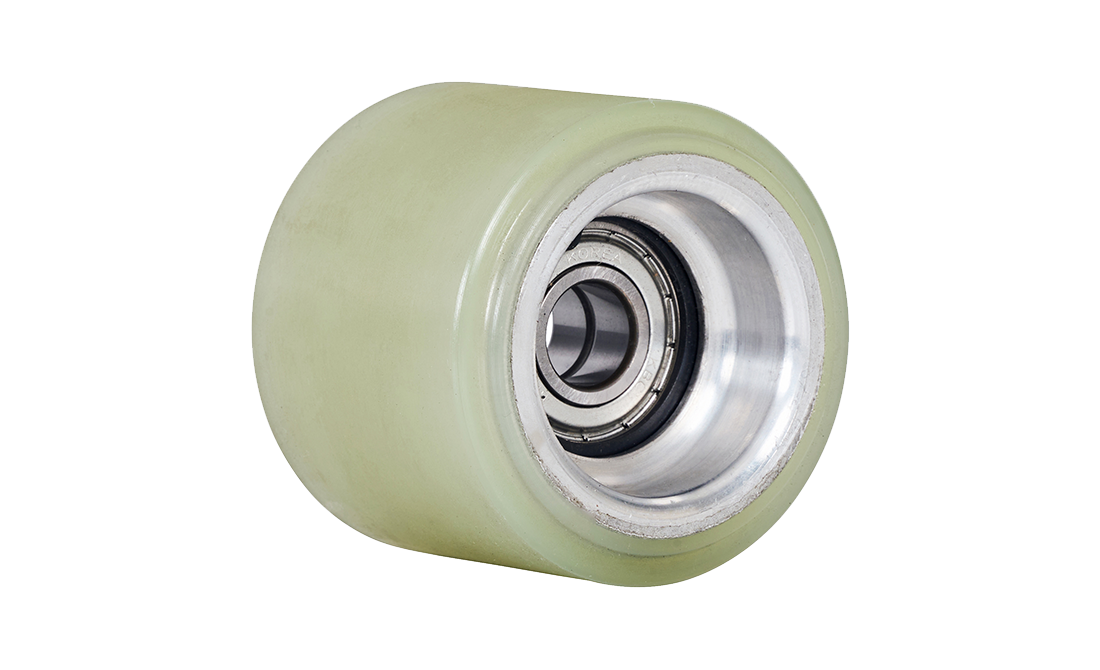

  • 3L10902

    3L10902

    • Outer Diameter(mm) Ø70
    • Bearing 6202 ZZ
    • Inner Diameter(mm) Ø35
    • Hardness(˚) 80
    • Width(mm) 60(50)

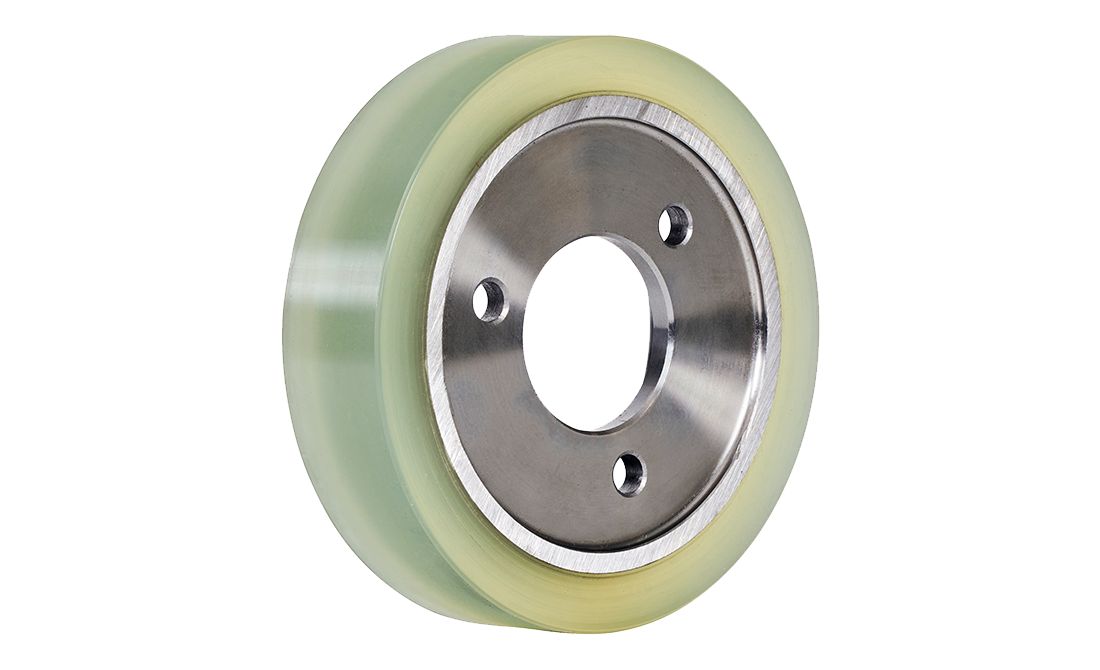

  • 131*35

    131*35

    • Outer Diameter(mm) Ø131
    • Bearing
    • Inner Diameter(mm) Ø44
    • Hardness(˚) 90
    • Width(mm) 35

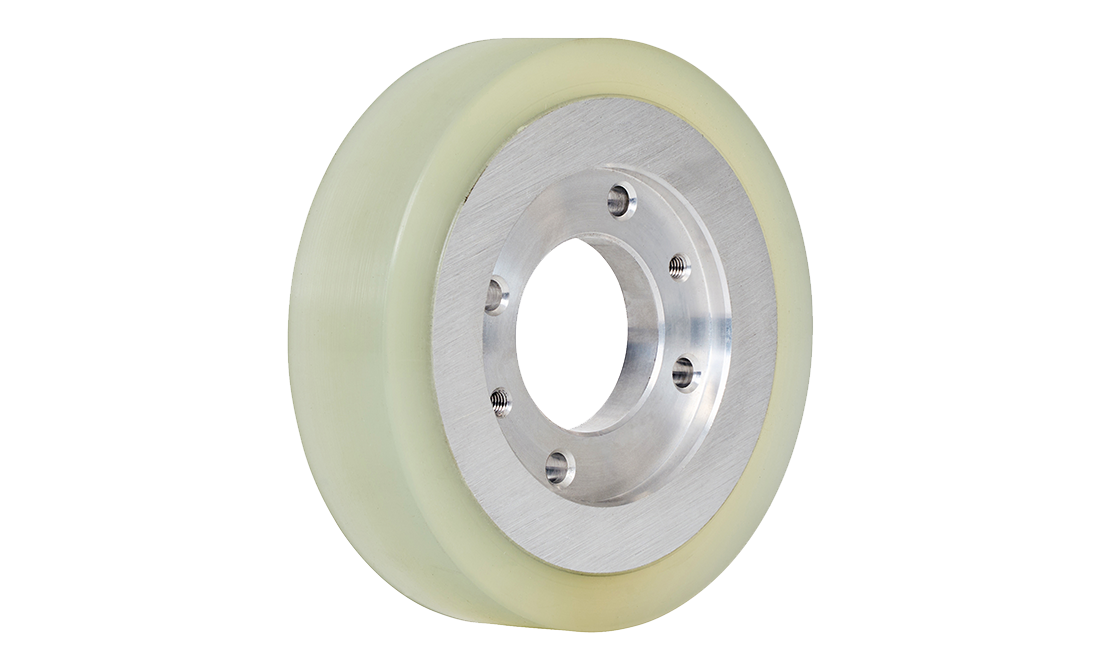

  • 135*35

    135*35

    • Outer Diameter(mm) Ø135
    • Bearing
    • Inner Diameter(mm) Ø44
    • Hardness(˚) 90
    • Width(mm) 35

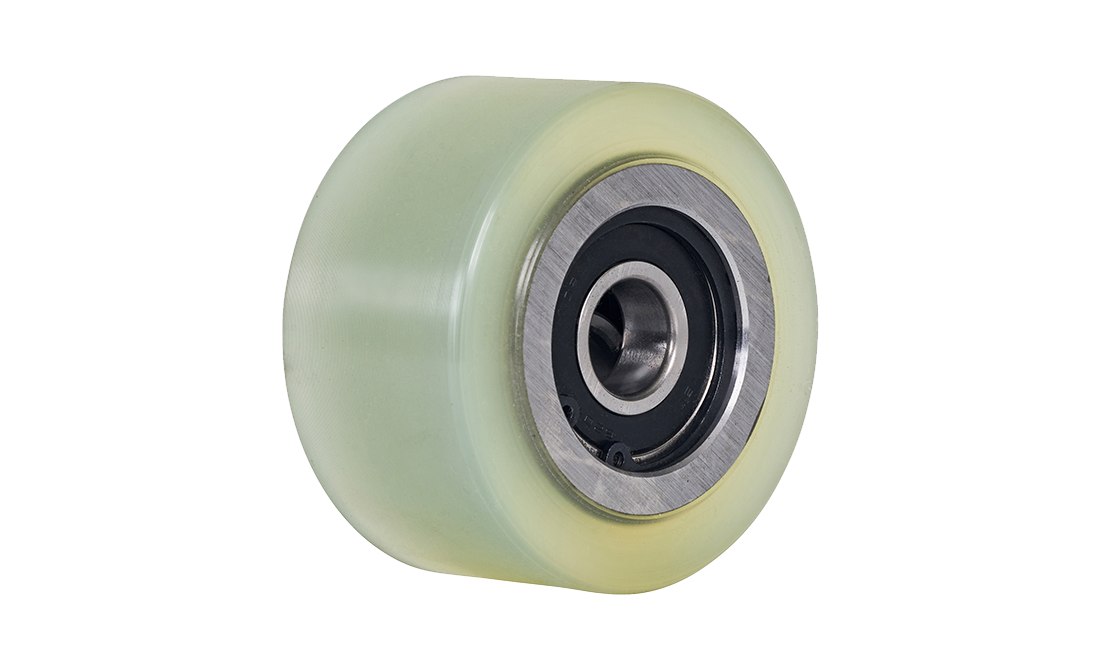

  • 90*50

    90*50

    • Outer Diameter(mm) Ø90
    • Bearing 6204 DD
    • Inner Diameter(mm) Ø47
    • Hardness(˚) 90
    • Width(mm) 50

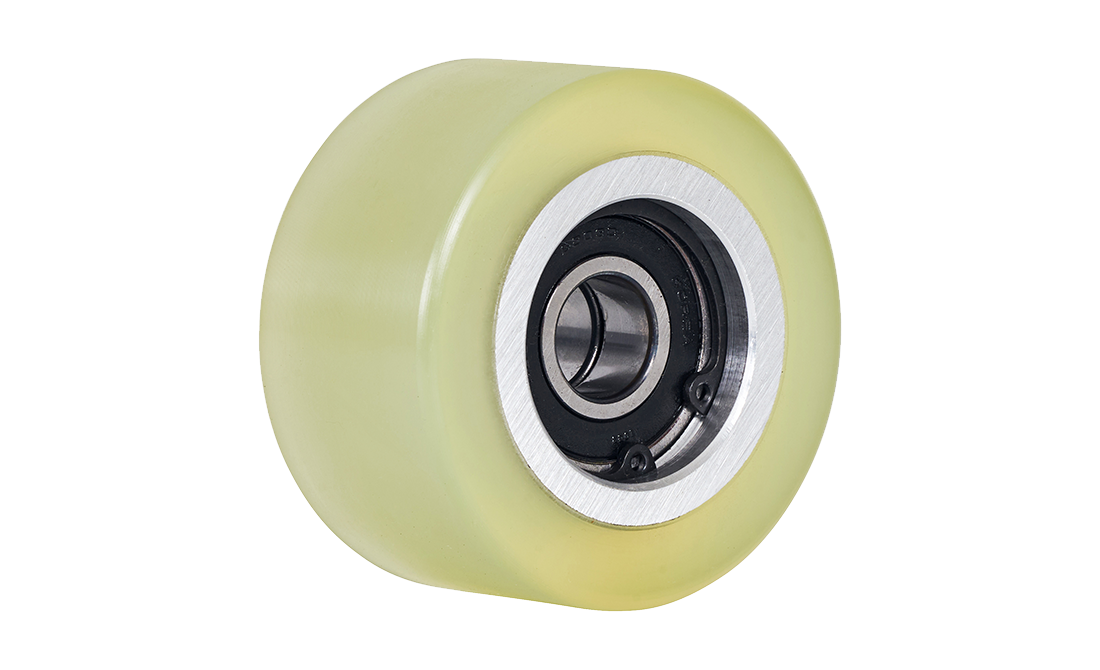

  • 76*41

    76*41

    • Outer Diameter(mm) Ø76
    • Bearing 6203 DD
    • Inner Diameter(mm) Ø40
    • Hardness(˚) 90
    • Width(mm) 41

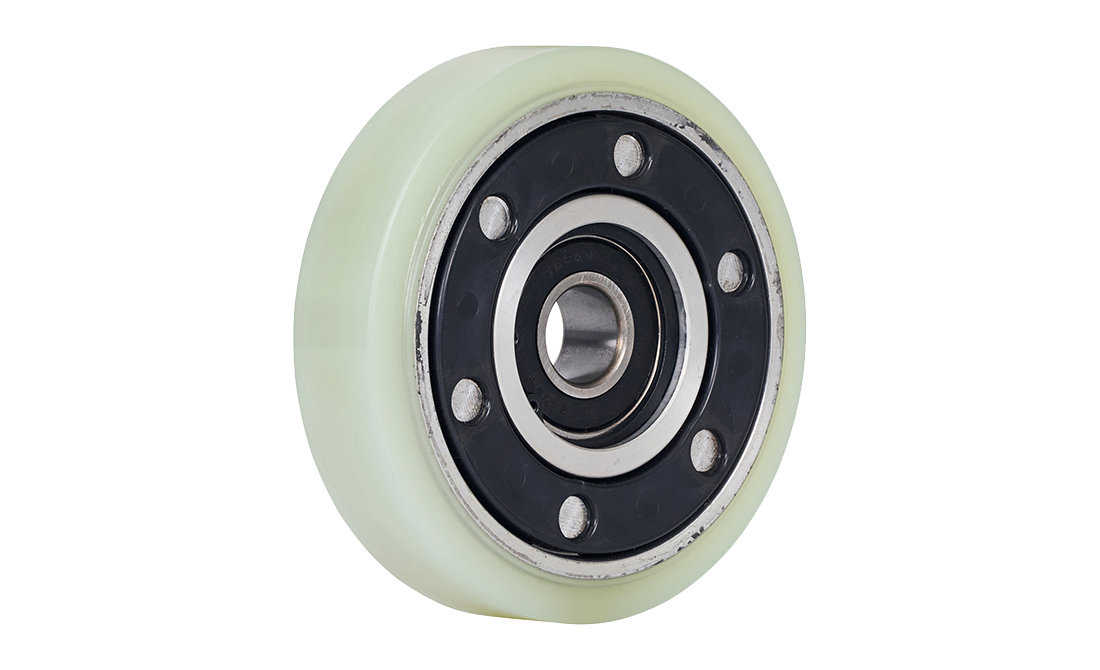

  • Dongyang D120

    Dongyang D120

    • Outer Diameter(mm) Ø120
    • Bearing 5204 DD
    • Inner Diameter(mm) Ø47
    • Hardness(˚) 95
    • Width(mm) 31
