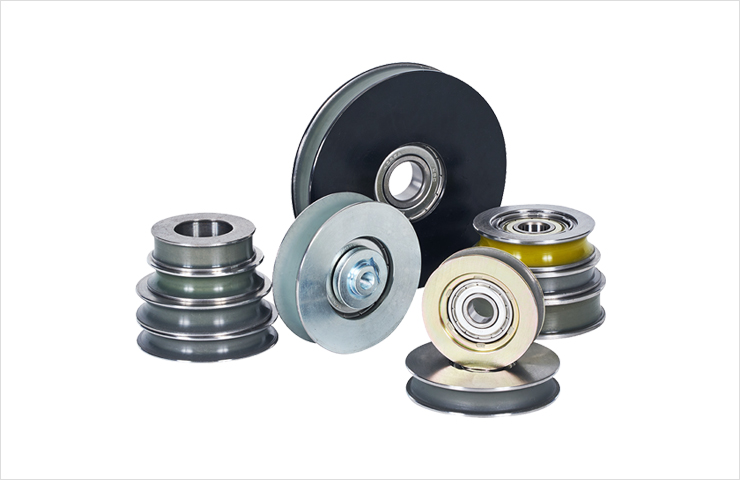

Elevator Hanger Rollers

Elevator Hanger Rollers
The quality of DI T&I’s hanger rollers has been proven through their application in OTIS and Mitsubishi elevators. We have been supplying hanger rollers to both OTIS and Mitsubishi, and operate dedicated in-house testing facilities to verify the quality of domestically produced hanger rollers. Through these capabilities, we continue to enhance product quality to meet evolving customer requirements.

The products listed below represent our main offerings. We also provide customized specifications to meet specific customer requirements upon request.

Part No. Outer Diameter(mm) Inner Diameter(mm) Width(mm) Bearing Remarks
3UF0204 Φ56 Φ32 14 6201
Dongyang Φ60 Φ60 Φ35 16 6202
3E14109 Φ64 Φ32 14 6201
3R66089 Φ65 Φ35 13 6202
133D045 Φ65 Φ35 15 6202 Hyundai Φ65
3R66089 Φ68 Φ35 13 6202
Fuji Φ68 Φ68 Φ35 14 6202
163C043 Φ68 Φ40 17 6203 Hyundai Φ85
4R06434 Φ70 Φ47 20 6204
YA006C621 Φ72 Φ35 14.6 6202
C163-0027 Φ72 Φ35 14.6 6202
AEA03C042 Φ76 Φ47 20.4 6204
C163-0026 Φ84 Φ47 17.4 6204
J0456BF Φ85 Φ47 20.4 6204
3R05637 Φ116 Φ47 20 6204
